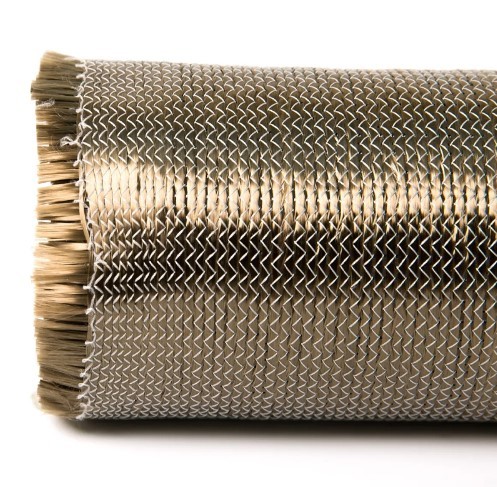

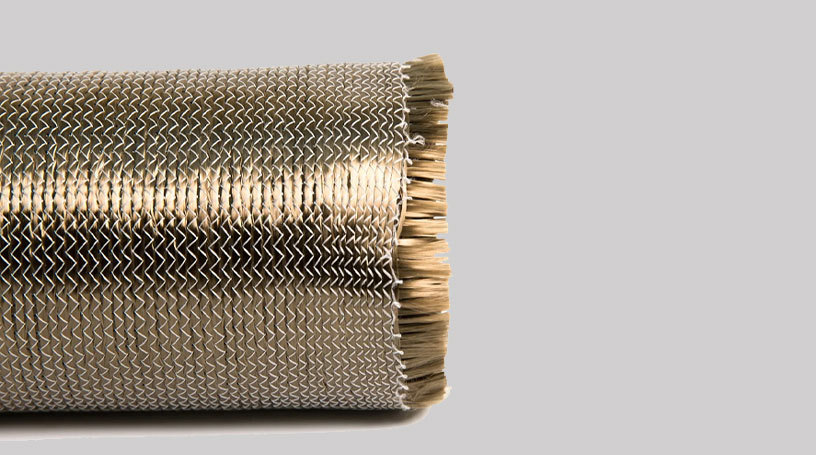

The biaxial fabric (0° & 90°) made by stitching two layers are different from woven fabric (0° & 90°). The stitched biaxial fabrics are non-crimp fabrics, which means rovings won't be interlaced as woven fabric. Woven fabric composite tends to fail in high fatigue due to the crimp. This stitched bidirectional fabric avoid the problem and provides excellent fatigue resistance.
The straight, flat paths of fiber bundles in biaxial leads to greater strength and stiffness. By putting down straight, flat fibers, directly in line with loading forces, the fibers will resist stretching and breaking immediately and with 100% of their strength. Biaxial also tends to have a higher fiber count than woven. This has three advantages. First, more fibers means greater strength. Second, higher fiber concentration means less matrix (resin) and therefore far less brittle laminate. Third, less matrix (resin) means less weight. So in addition to the fundamental physical advantages of biaxial, we get the secondary advantages greater fiber content, greater impact resistance and lower weight.
Product Features :
-High temperature resistance, corrosion resistance, excellent physical and chemical properties.
-High strenght, small thickness, good flexibility.
-High acid resistance,alkali resistance.
-Strong anti-ultraviolet performance, low moisture absorption, good insulation and good transmission properties.
-Parallel and straightening yarn, excellent mechanical properties.
-More direction mechanical performance can design according to the actual need freedom enhancement effect.
Product Technical Specifications:
Note: The warp and weft density and width of the fabric can be produced according to user requirements.
Storage: It should be stored in a dry and cool place with recommended temperature of 15-35°C and relative humidity of 30-70%. please do not
open the package unless you not use it, avoid moisture.
Used in bridge construction, wind turbine blades, boats, automobiles, sports equipment and other fields.
Packaging Information:
-Requirements for paper spindles:
1:Strenght requirement of paper shaft: capable of carrying 50KG.
2:Both ends of the paper shafe are required: a small hole at oneend and a U-shaped slot at the other end to fix the paper shaft.
-Requirements for plastic bags:
1:Size requirements: length*width: (1500*1500)mm.
2:Strenght requirements: 10s in thickness.
-Carton Requirements:
1:Strenght requirement of cartons: capable of carrying 50KG.
2:Internal size requirement of cartons: length*width*height: 1090*230*230mm
External size requirement of cartons: length*width*height: 1100*235*232mm
-Requirements for paper liners:
Paper liner size requirements: length*width*thickness: 225*225*40mm, medium hole diameter 110mm.
Product delivery date and Shipment:
-Shipment: By sea or by air.(For sample,transport by express)
-Delivery details: 15-20 days after receive the advanced payment.
