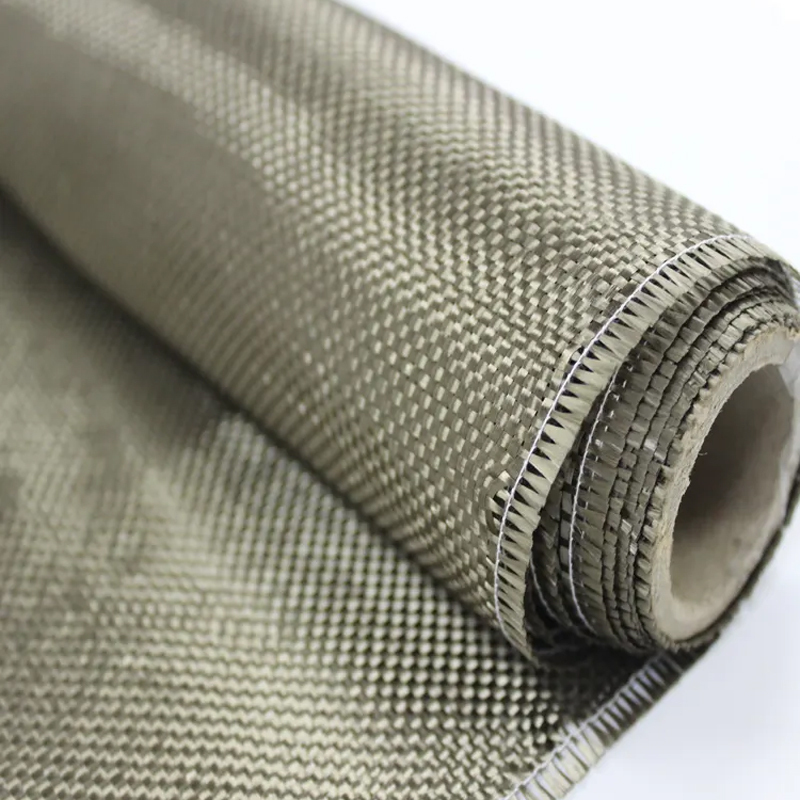

basalt fiber fabric roll

No.X-6

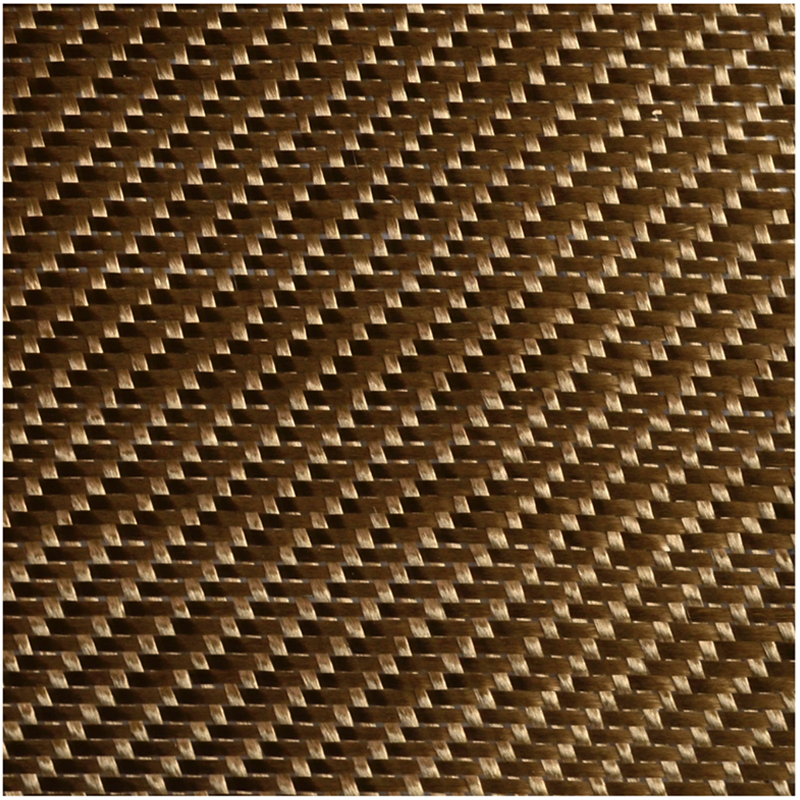

The basalt fiber cloth of our company adopts twisted or untwisted basalt continuous fibers as raw materials, and is woven with plain, twill and satin weaves. Divided into unidirectional cloth, bidirectional cloth and multi-directional cloth.
  • basalt fiber fabric roll
  • basalt fiber fabric roll
Description

Product Introduction:
The basalt fiber cloth of our company adopts twisted or untwisted basalt continuous fibers as raw materials, and is woven with plain, twill and satin weaves.
Divided into unidirectional cloth, bidirectional cloth and multi-directional cloth. Relying on the temperature resisitance, corrosion resistance, high strenght and
modulus, and electrical insulation of basalt fiber, it is processed by hand lay-up, pultrusion, autoclave, vacuum introduction, winding, resin transfer and other
processes, combined with unsaturated polyester resin (UP) or epoxy resin (EP).Used in bridge construction, wind turbine blades, boats, automobiles, sports
equipment and other fields.

basalt textile

Product Features :
-High temperature resistance, corrosion resistance, excellent physical and chemical properties.
-High strenght, small thickness, good flexibility.
-High acid resistance,alkali resistance.
-Strong anti-ultraviolet performance, low moisture absorption, good insulation and good transmission properties.
-Parallel and straightening yarn, excellent mechanical properties.
-More direction mechanical performance can design according to the actual need freedom enhancement effect.

Product Technical Specifications:

Note: The warp and weft density and width of the fabric can be produced according to user requirements.
Storage: It should be stored in a dry and cool place with recommended temperature of 15-35°C and relative humidity of 30-70%. please do not
open the package unless you not use it, avoid moisture.

Product Application:
Used in bridge construction, wind turbine blades, boats, automobiles, sports equipment and other fields.

Packaging Information:
-Requirements for paper spindles:
  1:Strenght requirement of paper shaft: capable of carrying 50KG.
  2:Both ends of the paper shafe are required: a small hole at oneend and a U-shaped slot at the other end to fix the paper shaft.
-Requirements for plastic bags:
  1:Size requirements: length*width: (1500*1500)mm.
  2:Strenght requirements: 10s in thickness.
-Carton Requirements:
  1:Strenght requirement of cartons: capable of carrying 50KG.
  2:Internal size requirement of cartons: length*width*height: 1090*230*230mm
    External size requirement of cartons: length*width*height: 1100*235*232mm
-Requirements for paper liners:
  Paper liner size requirements: length*width*thickness: 225*225*40mm, medium hole diameter 110mm.

Product delivery date and Shipment:
-Shipment: By sea or by air.(For sample,transport by express)
-Delivery details: 15-20 days after receive the advanced payment.
